TF-CSB2 diesel heating spray booth
TF-CSB2 diesel heating spray booth

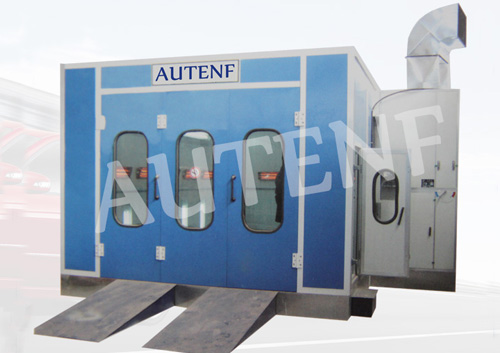

Note: picture is for reference only.
| Product name | diesel heating car spray booth |
| Model name | TF-CSB2 |
| Inside size | 6900 X 3900 x2600 mm (L*W*H) |
| Outside size | 7050 x 5250 x 3200 mm (L*W*H) |
| Main door | 3 folds, 3000 x 2500 mm (W*H), aluminum alloy covered frame |
| Personal door | 1 fold, 650 x 2000 mm (W*H) |
| Wall panel | 50 mm EPS + 0.35 mm steel plate x 2 |
| Basement | plate type pressing convex platform, 280 mm high, 5 rows of grills |
| Loading ramp | 2 ramps, 620 x 2000 mm each, diamond plate construction |
| Lighting | ceiling light: 24 x 16 W LED lights, side light: optional |
| Inlet fan | 2 x 3 KW centrifugal fans, total air capacity: 21000m3/h |
| Exhaust fan | 1 x 5.5 KW centrifugal fan, total air capacity: 12500m3/h |
| Burner | RIELLO G10 diesel burner, heating capacity: 100000 Kcal/h |
| Filter system |
primary filter: capture granules larger than 10 μm, filtering rate >83% ceiling filter: capture granules later than 4 μm, filtering rate > 98% |
| Control system | Lighting switch, spraying, risen-temperature spraying, baking temperature controller, time setting, failure alarm |
| Total power | 11 kw 380V 3 ph 50 hz |
Keywords: diesel/gas/fuel oil heating spray booth
