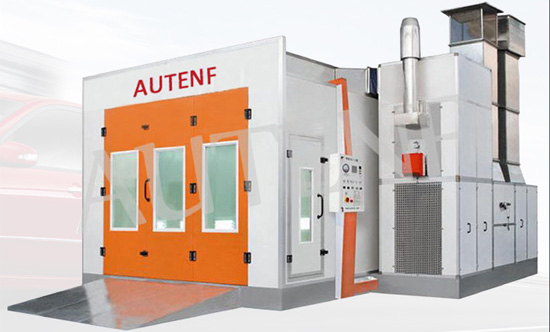

CSB5010LB auto paint booth

CSB5010LB auto paint booth

AUTENF 7 Meters Auto Baking Booth


Model AUTENF CSB5010LB
Inside dimension 7000*4000*2800mm (L*W*H)
Outside dimension 7100*5550*3600mm (L*W*H)
Main door 3 folds, 2800*2700mm (W*H)
Personal door 1 fold, 600*2000mm (W*H)
Wall panel 50mm rock wool
Basement and floor Galvanized steel assemble, height is 300mm, with adjustable bolts, full grille floor
3 pieces of ramps, 900*2000mm (W*L)
Lighting Ceiling light: 8 groups*3 pieces, 36W per piece
Side light: 10 groups*4 pieces, 36W per piece
Generator setting type Back upper intake air, back upper exhaust air, powder quadrate steel frame, coated steel
Inlet fan 1*7.5KW turbo fan, direct drive, air capacity: 25000m 3 /h
Exhaust fan 1*7.5KW turbo fan, direct drive, air capacity: 25000m 3 /h
Heating system RIELLO RG5S oil burner, heating productivity: 260000Kcal/h
Stainless steel heat exchanger, with anti-explosion hole, working temperature: 80 o C, pneumatic damper from spraying to baking cycle
Filter system Intake air: Pre-filter, high efficiency ceiling filter
Exhaust air: fiberglass filter
Control system Lighting switch, spraying, risen-temperature spraying, baking temperature controller, time setting, time accumulator, emergency stop, differential pressure meter, failure alarm
Total power 17.5KW
