CSB5005LB car paint oven with oil burner
CSB5005LB car paint oven with oil burner

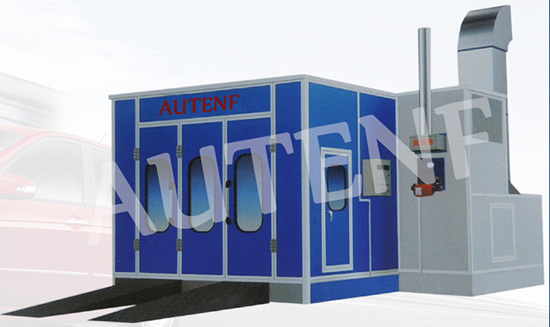

AUTENF CSB5005 Auto Painting & Spray Booth
| Model | AUTENF CSB5005LB (Water-Soluble Spray & Baking Booth) |
| Inside dimension | 6840 × 3900 × 2600mm (L × W × H) |
| Outside dimension | 6940 × 5120 × 3300mm (L × W × H) |
| Main door | 3 folds, 2800 × 2500mm (W × H) |
| Personal door | 1 fold, 600 × 1800mm (W × H) |
| Wall panel | 50 mm EPS |
| Lighting |
Ceiling light: 8 groups × 3 pieces, 36W per piece Side light: optional |
| Generator setting type | Side upper intake air, quadrate steel frame, coated steel |
| Water-soluble disposal ark | 32 pieces of air nozzles, 8 pieces of nozzles on each corner, 4 × 0.35KW air fans |
| Inlet fan | 2 sets of 4KW double-intake centrifugal fans, air capacity: 24000m 3 /h |
| Exhaust fan | Optional |
| Heating system | BT14 oil burner, heating productivity: 180000Kcal/h |
| Filter system | Intake air: Pre-filter, high efficiency ceiling filter |
| Control system | Lighting switch, spraying, risen-temperature spraying, baking temperature controller, time setting, failure alarm |
| Total power | 9KW |
Keywords: Garage Equipment, Auto Painting Booth
