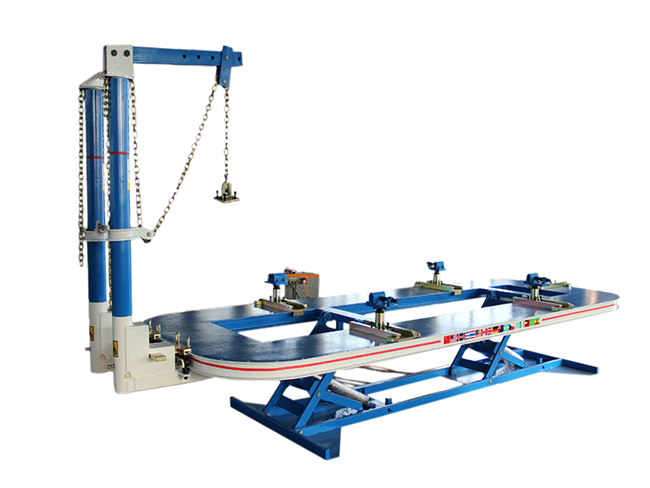

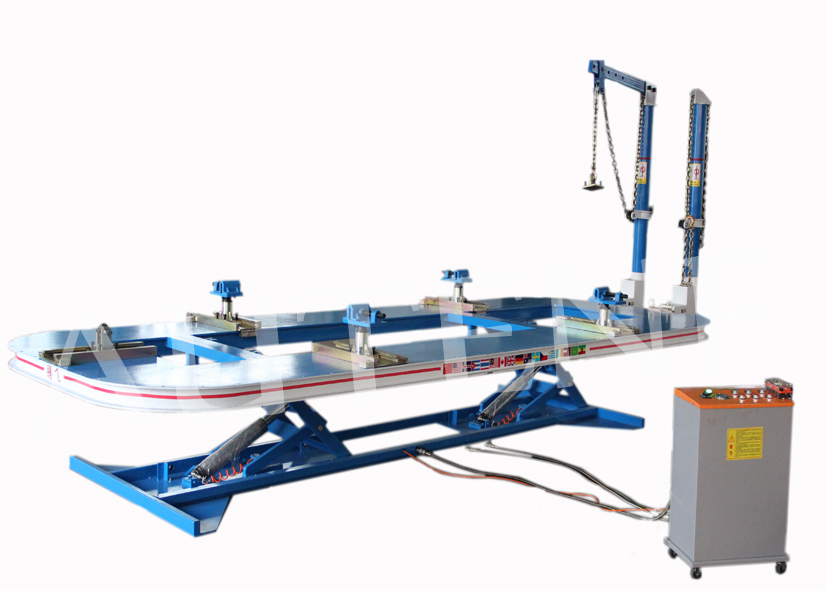

ATV-MS2 electrical car frame machine

ATV-MS2 electrical car frame machine

AUTENF Auto Collision Repair System T-F8


Specification Standard Type Extended Type
platform length 5600 mm 6000 mm
platform width 2100 mm 2200 mm
platform height 300--1020 mm 300--1020 mm
pulling power 10 tons/98 KN 10 tons/98 KN
pulling range 360 degree 360 degree
hydraulic pressure 70 Mpa 70 Mpa
pneumatic pressure 0.8 Mpa 0.8 Mpa
lifting capacity 3500 kg 3500 kg
lifting type parallel  type parallel  type
weight 3000 kgs 3200 kgs


1.parallel whole manganese steel platform allows easy drive on and off of any vehicle;
AUTENF clamps anchor most vehicles rock-solid;
3. combination of overhead puller and common puller enlarges pulling power and repair scope;
4. dead car dolly and wheel stand helps to load vehicles with damaged wheels onto platform easily;
5. air pump and electric pump is optional at your choice;
6. hydraulic system has large pulling capacity, long lifespan and low malfunction;
7. with high strength pulling accessories, it can recover any car distortion;


Keywords: New Car Repair Machine
