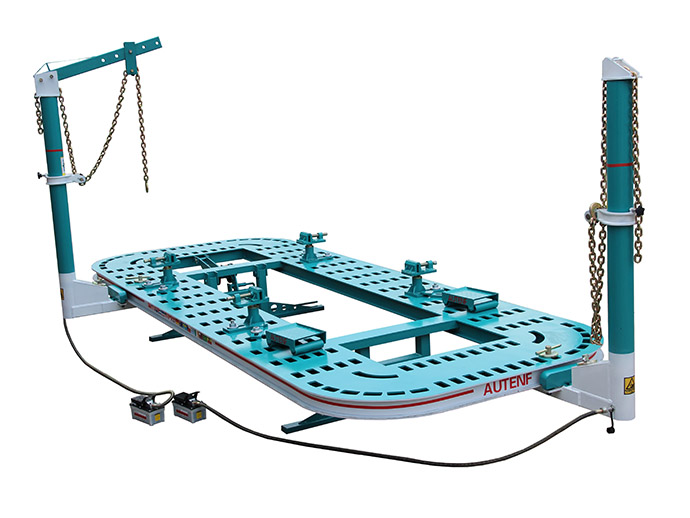

ATU-ER rectangular tube car bench

ATU-ER rectangular tube car bench

auto chssis straighten machine

SPECIFICATIONS

 Model

 ATU-ER

 Power unit

 pneumatic-hydraulic

 Platform material

 rectangular tube

 Platform size

 5600*2100 mm

 Platform ring width

 610 mm

 Platform working height

 550 mm

 Lifting capacity

 3500 KG

 Pulling tower quantity

 3 pc

 Pulling power

 10 tons/98 KN

 Pulling range

 360 degree

 Hydraulic pressure

 70 Mpa

 Pneumatic pressure

 0.8 Mpa

 Gross weight

 2300 kg


FEATURES

1. Tiltable rectangular tube platform allows easy drive on and off of any vehicle;
2. Adopting manganese steel welding, fixed pulling tower conveniently, stretching at arbitrary angles, reducing workloard, improving efficiency;
3. Combination type of pulling tower, strong and effective, all-round repair body and car roof and so on;
4. Adopting import highly quality hydraulic pump, powerful, low failure rate (electric box optional);
5. Hydraulic system has large pulling capacity, long lifespan and low malfunction;
6. With high strength pulling accessories, it can recover any car distortion;


Keywords: Garage Equipment, Car Repair Bench
