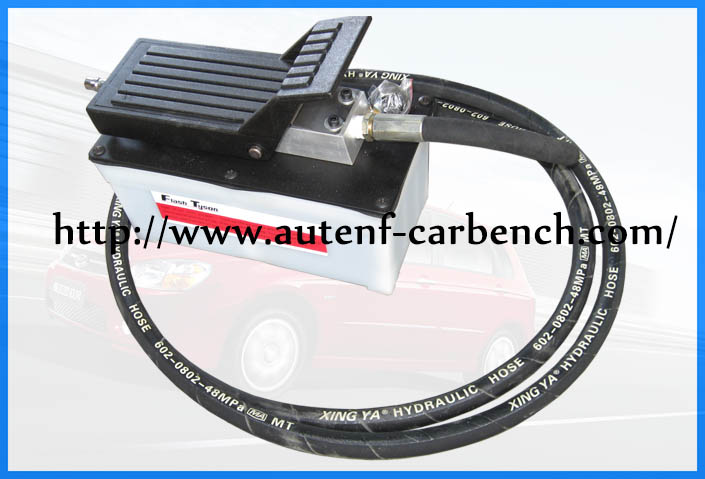

AUTENF pneumatic pump

AUTENF pneumatic pump

high pressure pneumatic pump


Model AUTENF PP96A2
Specification 225 * 130 *200 mm
Oil special hydraulic fluid; 1.6L oil tank
application mainly supplying hydraulic equipment with power, used for shaping and adjusting of steel-frame structure; widely used for high pressure power of automobile manufacture, repair and other fire forbidden areas.
Fuel delivery 0.6 L/min
Rated pressure input air pressure: 0.7 Mpa
output oil pressure: no less than 70 Mpa
Instructions connect the air intake to the oil-water separator and air pump, oil outlet pipe to oil cylinder; when the air pressure rises to 4-7 Mpa, open the pedal switch to start the oil pump.
Attentions Before operation, connect the pneumatic power to remove the air in the oil pump. (Let the oil tank vertical to press the intake switch until the oil is removed from the oil outlet.)
Keywords: pneumatic hydraulic pump
